CuZn IP67 Panel Mount Waterproof Connector RJ45 Plastic 10mm Cable

Name: CuZn IP67 Panel Mount Waterproof Connector RJ45 Plastic 10mm Cable
Brand: RIGOAL
Price: 1 USD

Quality CuZn IP67 Panel Mount Waterproof Connector RJ45 Plastic 10mm Cable for sale

Brand Name : RIGOAL

Model Number : RJ45 connector

Certification : CE，ROHS，ISO

Place of Origin : Shen zhen，China

MOQ : 100

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 7~14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Application : Power, LED, Electrical equipment

Max. Cable OD : 10mm

Working Temperature : -45 ℃~+105℃

Gender : Male to Female, Male to Female

Protection Level : IP67

Mating Style : Screw

Panel Cut-out : 19.2~20.8mm

Type : RJ45

Contact Now

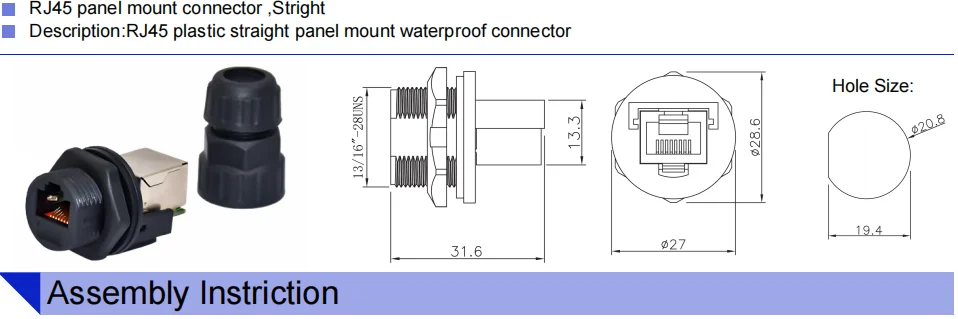

RJ45 Plastic Straight Panel Mount Waterproof Connector

Product Description

CuZn IP67 Panel Mount Waterproof Connector RJ45 Plastic 10mm Cable

Compliance with D level or CAT 5e standard of EIA567B and ISO/IEC11821,RJ45 connectors compatible CAT5e,data transfer rate reach
 10GBIT/S

Multi-style connecting modes:straight dual Ethernet port, 90 degree, PCB type and pin type available

Applicable for harsh environments.

Cable jacket with high performance materials shell and unique dual-clip-clip wire saddle.

Sheath of cable applicable for common RJ45 plugs.

Waterproof level IP68

Cap cover available when not mating

Shielding system with high frequency noise immunity and electromagnetic interference protection.

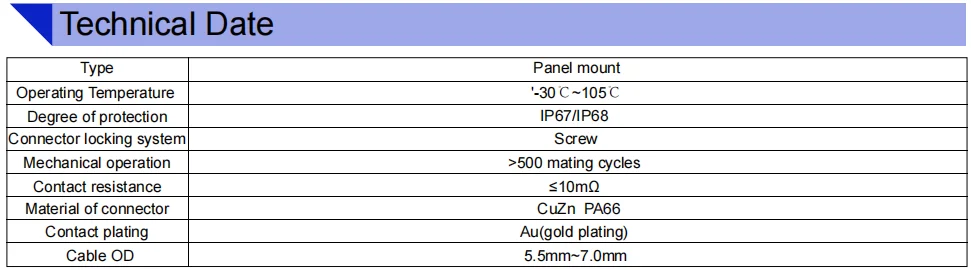

Specification

item	value
Place of Origin	China
	Guangdong
Brand Name	RIGOAL
Model Number	RJ45 connector
Type	ADAPTER

Product Tags:

CuZn Panel Mount Waterproof Connector

IP67 Panel Mount Waterproof Connector

10mm Cable Circular Power Connector

CuZn IP67 Panel Mount Waterproof Connector RJ45 Plastic 10mm Cable Images
